Ram Promaster 136" Flares

MERCEDES SPRINTER 144" WB / 2007 to 2024 / High or Low Roof

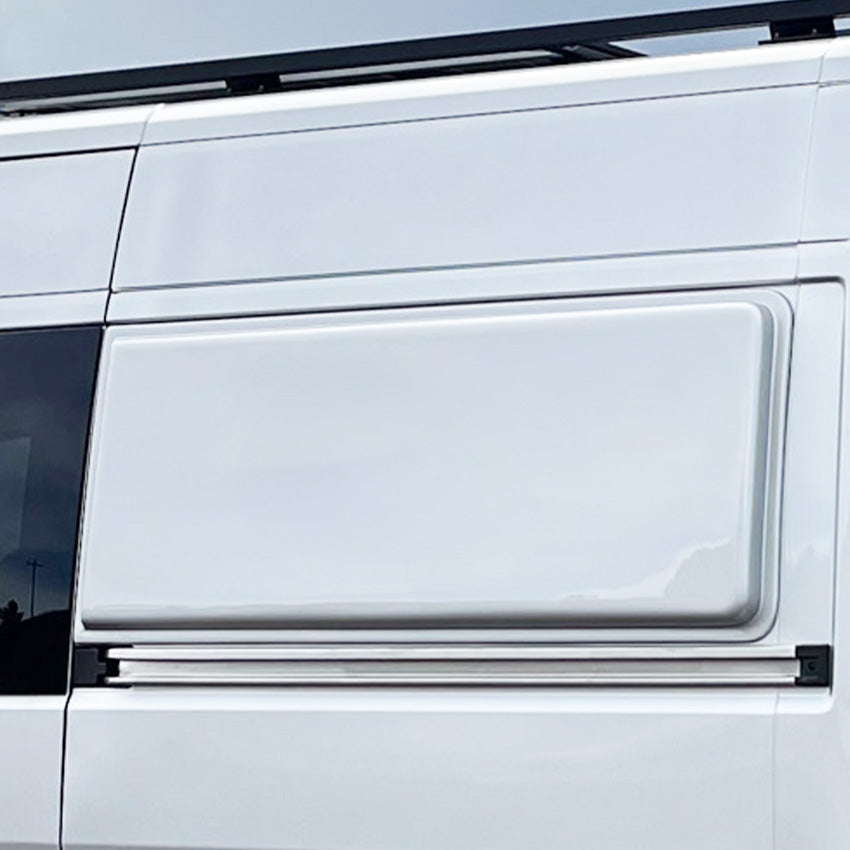

Because they're awesome! Flares provide a sleek, elegant finish to your van while also adding 20" of space back into your floorplan. When flares are installed on either side of your van, you’ll have 80 inches of space from wall to wall. This allows you to put a queen-size bed 'sideways' rather than the usual lengthwise configuration. We are the inventors of Flares and we’ve also patented them! So, if you have questions about configurations with windows or anything else, just give us a call.

Flares are made to order and typically ship within 2-3 business days of placing your order.

The answer to this question depends on which Flare depth you select, whether they have windows, and which vehicle you'll be installing them onto. However, we have devised a chart outlining the van-specific measurement estimates from Flare wall to Flare wall. Check it out here.

We get this question a bunch so we created a handy chart for comparing the features. Check it out here.

Pro Tip- slider windows usually need to be closed during heavy rain to keep your mattress from getting soaked. Awning windows are popular because they hinge from the top and open at the bottom, and can typically be open during heavy rain.

The sliding door will hit the flare if it is extended depth. The regular depth flares have been carefully engineered to not interfere with the sliding door.

Your flares arrive with a gel coat. Your body shop will inspect the surface and check for pin holes then paint to match the paint code of your van. Once the paint cured, the install can begin.

Flares are not sealed when finished at the factory, paint is recommended to ensure the flares will withstand weathering and road conditions for years to come.

Truck bed liner can be used as an alternative to traditional paint. Raptor Spray.

Typically it takes 4 hours to DRY FIT windows and flares, then cut the openings, prep the surface, glue and tape the flares to side of van. There is then another 24-36 hours minimum to allow the adhesive to cure.

Well, it's relatively straightforward once you get comfortable cutting holes in your van! Your Flares arrive with a grey gel coat finish, and you'll always want to dry-fit them first. Hold them in place and make sure the fit is as perfect as we intended! Your local paint shop can paint them to your color preference, and once the paint is cured, the installation can begin! The rear quarter panel is cut out along the OEM lines (the same place the factory would cut to install windows), and the bare metal from the cut is painted with anti-rust primer. The part is secured onto the outside of the van using the supplied adhesive and secured with painter's tape while the adhesive cures. Please note: our adhesives expire 12 months from the manufacturing date, so always make sure to check the dates before use. The remaining adhesive is used on the inside to ensure a perfect seal. Installation time varies based on your experience and skill level, but 2-6 hours is enough to get Flares on your van! And if you ordered windows, those are installed into the Flares once the adhesive is cured. Then add Trim Rings and the Flarespace Bed System, and start sleeping sideways!

If DIY is not your thing, Flarespace encourages all clients to seek one of our professional installers. It is a custom part that requires dry fitting, paint, and careful installation, as well as specialty tools to cut out the metal, so an experienced installer is a great option to get the job done.

While Flarespace can't match the noise reduction of a finished wall with 4" depth, Flares with 1/4" to 3/8" of closed-cell foam insulation do much better than any window or roof vent in your van.

No. The slider door will open fully without modification. Regular depth Flares will work on vans with dual slider doors.

2" - a ladder must be installed in front of the wheel well.

Flarespace offers a one-year limited warranty from the date of purchase on our fiberglass Flares. Please refer to our full warranty disclaimer for further information.

All of our parts are made to order, and we, therefore, do not accept returns. Flares are shipped in custom packaging to ensure safe delivery. In the event the Flares are damaged during shipping, the customer is required to wait for inspection from the shipping company and take specific pictures of the damage to the part and packaging. Flarespace will not be responsible for repairing or replacing damaged Flares if an inspection doesn't occur. Please let us know immediately if Flares sustain damage during their time with the shipping company. Do not have parts repaired or dispose of packaging until the claim resolution process is finished.

Flarespace utilizes ground shipping within the continental US (shipping charges calculated at checkout). International customers have successfully used freight forwarding companies to ship their Flare orders outside of the US. Carlile and Vanguard have export logistics centers in the US and assist with account setup and customs requirements. Flarespace will ship to one of these centers.
