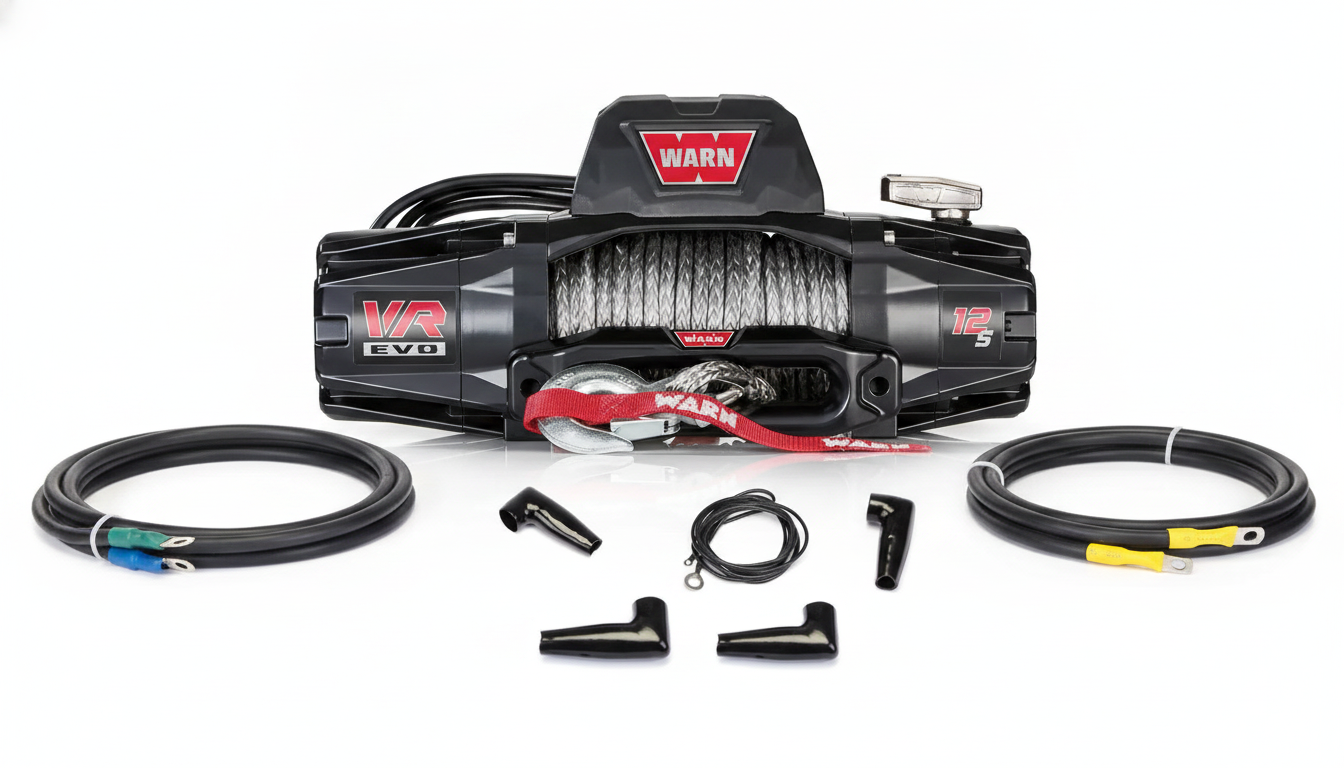

WARN VR EVO12-S Winch + Control Pack Relocation Kit
RECOVERY GEAR
Ideal for 3/4 and one-ton pickups and all types of larger, heavier rigs, the 12,000 lb. capacity VR EVO 12-S has loads of amenities, a rugged style, and a price that won’t pull you out of your budget. These are the hardest-working Standard-Duty winches we've ever offered and they have an equally impressive standard warranty too.
VR EVO winches are the hardest-working, standard-duty winches available. They feature the lowest amp draw and fastest line speed under load in their class, IP68-rated waterproof construction for performance in all conditions, and a two-in-one wireless/corded remote that gives you options when winching. Plus, they're covered by our industry-leading limited lifetime warranty. All VR EVO winches are available at a price that won't break the bank.
Vehicle Mounted; Vehicle Recovery Winch; 12 Volt Electric; 12000 Pound Line Pull Capacity; 90 Foot Synthetic Rope; Hawse Fairlead; Wired Remote; Planetary Gear Drive; Requires Winch Carrier or Winch Mount
Winch price includes the Control Pack Relocation Kit which is a necessity for use with the nVader Brushguard Cradle.
Overview
- Rugged, one-piece, cast-aluminum tie plate for added strength and durability
- 90' of lightweight, easy-to-handle 3/8" synthetic rope and a black hawse fairlead
- Two-in-one remote with wired and wireless controls for increased winching options
- Sealed Albright contactor delivers the ultimate in reliability
- Control pack can be relocated for low-profile installations
- Limited lifetime warranty (mechanical), seven year electrical warranty
Manuals and Literature
Please see the Product Literature page for winching guides and installation manuals.
Specifications
RATED LINE PULL (SINGLE LINE) 12,000lbs (5443 kg)
BRAKE ACTIVATION Automatic
CABLE MATERIAL Synthetic
CABLE LENGTH 90 FT
MOTOR VOLTAGE 12V DC
ELECTRICAL CONTROLS Contactor
GEAR RATIO 234:1
GEARING 3-Stage Planetary
REMOTE CONTROL Included
CLUTCH (FREESPOOLING)Rotating ring gear with stainless steel clutch lever. Manual lever operation.
BRAKE Automatic
DRUM DIAMETER/LENGTH 3.15”/9.0” (80mm/229mm)
FAIRLEAD Hawse
RECOMMENDED BATTERY 650 CCA minimum for winching
BATTERY LEADS 2 gauge, 72” (1.83m)
FINISH Satin-black powder coat
WARRANTY Limited lifetime
WEIGHT 85lbs (in box)
Winch Relocation Kit
Certain bumpers have space constraints that require a low-profile winch configuration. This kit includes power cables to allow owners to remove and remotely mount the control pack.
- Includes 78" of power cables, control pack relocation bracket, hardware, and bus bar isolator
- Relocation bracket sold separately
- Backward compatible with ZEON winch models
- Supersedes WARN Part #89960
- Rugged, one-piece, cast-aluminum tie plate for added strength and durability
- 90' of lightweight, easy-to-handle 3/8" synthetic rope and a black hawse fairlead
- Two-in-one remote with wired and wireless controls for increased winching options
- Sealed Albright contactor delivers the ultimate in reliability
- Control pack can be relocated for low-profile installations
- Limited lifetime warranty (mechanical), seven year electrical warranty
Please see the Product Literature page for winching guides and installation manuals.
RATED LINE PULL (SINGLE LINE) 12,000lbs (5443 kg)
BRAKE ACTIVATION Automatic
CABLE MATERIAL Synthetic
CABLE LENGTH 90 FT
MOTOR VOLTAGE 12V DC
ELECTRICAL CONTROLS Contactor
GEAR RATIO 234:1
GEARING 3-Stage Planetary
REMOTE CONTROL Included
CLUTCH (FREESPOOLING)Rotating ring gear with stainless steel clutch lever. Manual lever operation.
BRAKE Automatic
DRUM DIAMETER/LENGTH 3.15”/9.0” (80mm/229mm)
FAIRLEAD Hawse
RECOMMENDED BATTERY 650 CCA minimum for winching
BATTERY LEADS 2 gauge, 72” (1.83m)
FINISH Satin-black powder coat
WARRANTY Limited lifetime
WEIGHT 85lbs (in box)
Certain bumpers have space constraints that require a low-profile winch configuration. This kit includes power cables to allow owners to remove and remotely mount the control pack.
- Includes 78" of power cables, control pack relocation bracket, hardware, and bus bar isolator
- Relocation bracket sold separately
- Backward compatible with ZEON winch models
- Supersedes WARN Part #89960
