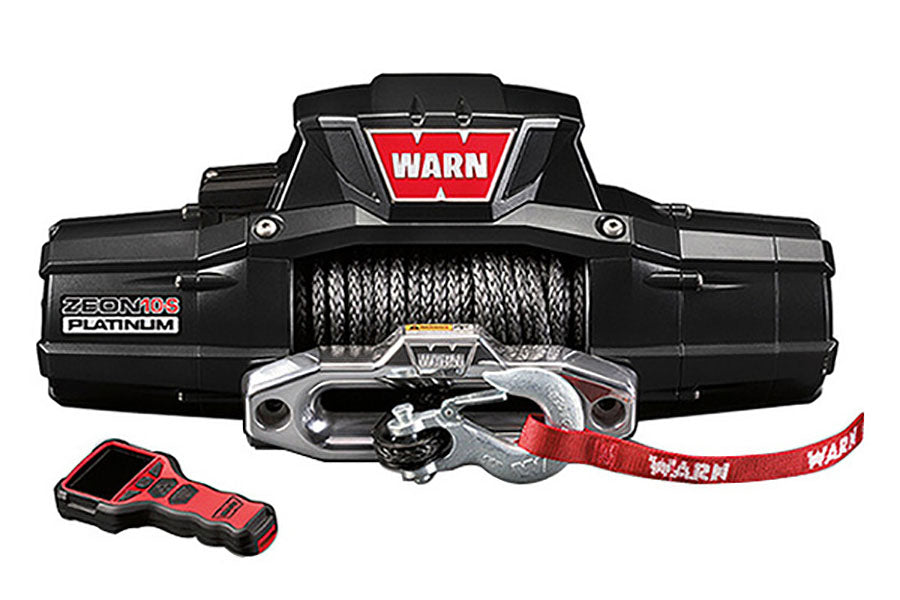

WARN ZEON 10-S Platinum Winch
RECOVERY GEAR
The ZEON 10-S Platinum is a winning combination of high-tech features mixed with ultimate performance to create an incredibly versatile pulling product. With a 10,000 lb. capacity it's great for a variety of mid-sized off-road vehicles and Jeeps. With a remote clutch, advanced wireless remote, 12-volt accessory outlets, and fast line speeds, this is winch offers loads of modern pulling prowess.
The ZEON Platinum is the future of winching with state-of-the-art features, cutting-edge technology, and world-class engineering. The one-of-a-kind Advanced Wireless Remote controls the clutch, power in/power out, plus it displays motor temperature and vehicle battery info. It also can control two 12-volt accessories, which can be plugged directly into the winch.
- High-speed motor and unique gear train provides 33% faster line speed than the ZEON, and increased durability
- Plug two 12V accessories directly into the winch and control with remote, no drilling through the firewall
- Advanced Wireless Remote operates the winch's clutch, 12-volt accessories, and power-in- and power-out functions. Also provides vehicle battery info and motor temperature details.
- Full IP68 waterproofing keeps water and the elements out
- Includes 100' of lightweight, easy-to-handle 3/8" Spydura synthetic rope and a large-radius polished aluminum hawse fairlead
- Large diameter drum reduces rope wear, dissipates brake heat, and features a unique rope anchor system for strength
- Convertible control pack for upright or low-profile mounting options
- Best-in-class cone brake; holds the winch's full-rated load
- Industry-leading warranty: Limited lifetime (mechanical components); seven year (electrical components)
Overview
- Engineered, tested, and assembled in Clackamas, Oregon, USA.
- New high-performance, high-efficiency motor and geartrain delivers blazing fast no-load line speeds of up to 40 ft/min— the fastest in its class.
- Reliable waterproof construction features o-ring rubber sealing. The entire winch is IP68K submersion and IP69K high pressure spray rated.
- Upgraded, corrosion resistant black fasteners and new, UV resistant bus bar covers meet the highest OEM-grade specifications.
- Full metal armor protects components from impact and damage.
- WARN Spydura synthetic rope is strong, lightweight, easy-to-handle, with heat-resistant inner wraps and abrasion sleeve.
- Upgraded black aluminum fairlead is made of forged 6061-T6 billet aluminum, giving superior corrosion, impact, salt, weather, and UV-resistance for long-lasting good looks.
- Albright contactor control and bus bars for the ultimate in electrical reliability and efficiency.
- Available in 10,000 lb. and 12,000 lb. capacities, with synthetic rope, for a variety of trucks, Jeeps, and SUVs
- Includes a durable waterproof corded remote with 12’ lead, and the HUB receiver for 100’+ range of wireless control, when paired with the WARN HUB app
- Industry-leading warranty: Limited lifetime mechanical, seven year electrical—all backed by a global service network.
Manuals and Literature
Please see the Product Literature page for winching guides and installation manuals.

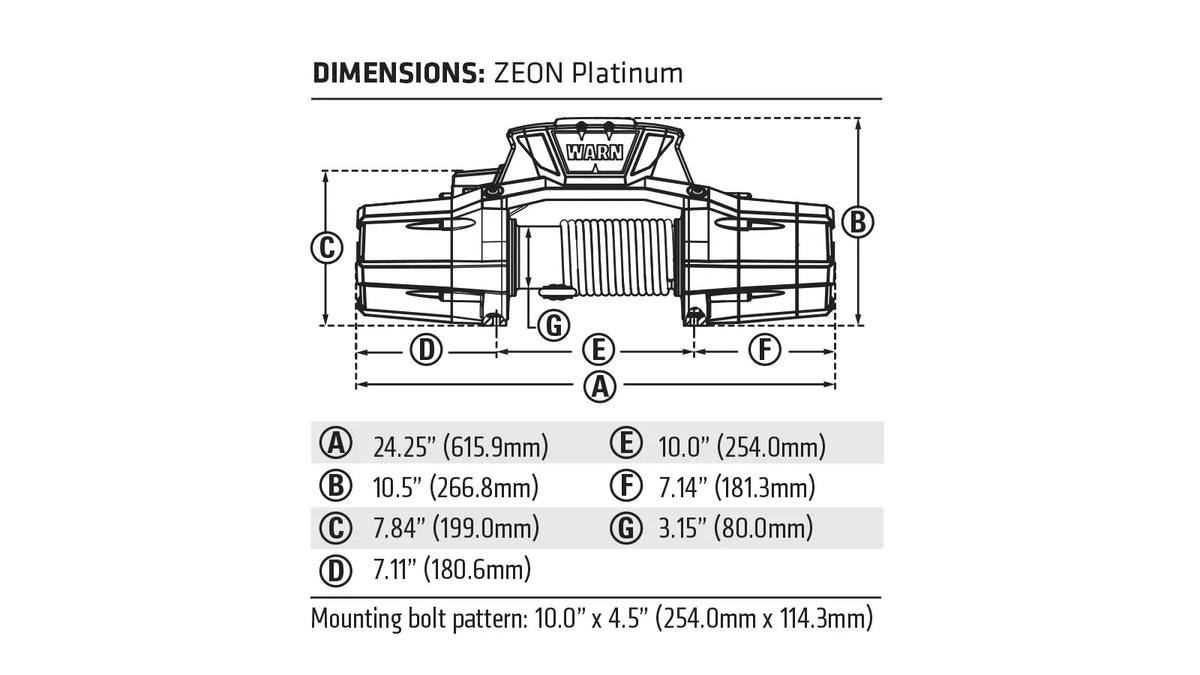

Specifications

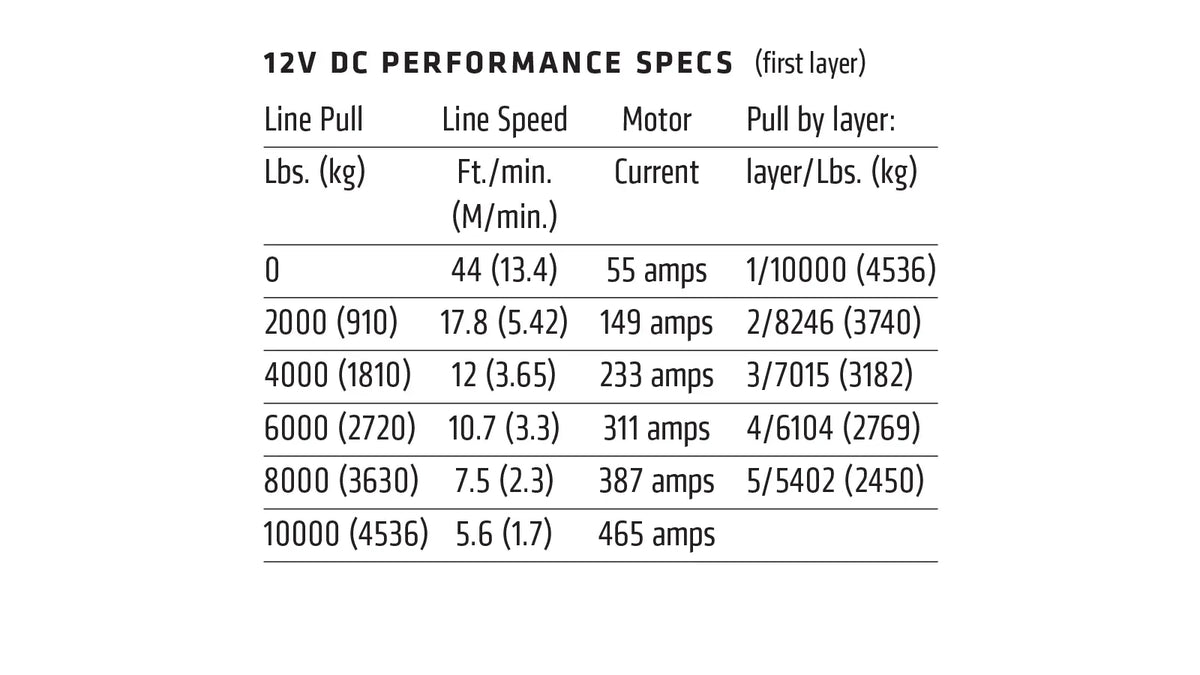

RATED LINE PULL (SINGLE LINE) 10,000lbs (5443 kg)
NO LOAD LINE SPEED 31 ft/min (9.45m/min)
RATED LOAD LINE SPEED3 ft/min (0.91m/min)
NO LOAD MOTOR CURRENT 67 Amps
RATED LOAD MOTOR CURRENT466 Amps
MOTOR 12V DC, series wound (exclusive WARN high-performance design)
ELECTRICAL CONTROLS Contactor
WIRING Automotive OE-grade buss bars
CORROSION RESISTANCE 408 hour salt spray
INGRESS PROTECTION IP68 submersion and IP69K spray testing (entire unit)
REMOTE CONTROL Corded remote with 12’ (3.7m) lead, plus HUB Wireless Receiver
GEARTRAIN 3-stage planetary
GEAR RATIO 176:1
CLUTCH (FREESPOOLING)Rotating ring gear with stainless steel clutch lever. Manual lever operation.
BRAKE Automatic, six segment mechanical cone
DRUM DIAMETER/LENGTH 3.15”/9.0” (80mm/229mm)
ROPE 3/8” X 100’ Spydura Pro Synthetic
FAIRLEAD Black anodized, forged aluminum hawse
RECOMMENDED BATTERY 650 CCA minimum for winching
BATTERY LEADS 2 gauge, 72” (1.83m)
ZEON FINISH Satin-black powder coat
FINAL POINT OF ASSEMBLY Warn facility in Clackamas, Oregon, USA
WARRANTY Limited lifetime mechanical, 7 years electrical
WEIGHT 85lbs (in box)
Winch Relocation Kit
Certain bumpers have space constraints that require a low-profile winch configuration. This kit includes power cables to allow owners to remove and remotely mount the control pack.
- Includes 78" of power cables, control pack relocation bracket, hardware, and bus bar isolator
- Relocation bracket sold separately
- Backward compatible with ZEON winch models
- Supersedes WARN Part #89960
- Engineered, tested, and assembled in Clackamas, Oregon, USA.
- New high-performance, high-efficiency motor and geartrain delivers blazing fast no-load line speeds of up to 40 ft/min— the fastest in its class.
- Reliable waterproof construction features o-ring rubber sealing. The entire winch is IP68K submersion and IP69K high pressure spray rated.
- Upgraded, corrosion resistant black fasteners and new, UV resistant bus bar covers meet the highest OEM-grade specifications.
- Full metal armor protects components from impact and damage.
- WARN Spydura synthetic rope is strong, lightweight, easy-to-handle, with heat-resistant inner wraps and abrasion sleeve.
- Upgraded black aluminum fairlead is made of forged 6061-T6 billet aluminum, giving superior corrosion, impact, salt, weather, and UV-resistance for long-lasting good looks.
- Albright contactor control and bus bars for the ultimate in electrical reliability and efficiency.
- Available in 10,000 lb. and 12,000 lb. capacities, with synthetic rope, for a variety of trucks, Jeeps, and SUVs
- Includes a durable waterproof corded remote with 12’ lead, and the HUB receiver for 100’+ range of wireless control, when paired with the WARN HUB app
- Industry-leading warranty: Limited lifetime mechanical, seven year electrical—all backed by a global service network.
Please see the Product Literature page for winching guides and installation manuals.
RATED LINE PULL (SINGLE LINE) 10,000lbs (5443 kg)
NO LOAD LINE SPEED 31 ft/min (9.45m/min)
RATED LOAD LINE SPEED3 ft/min (0.91m/min)
NO LOAD MOTOR CURRENT 67 Amps
RATED LOAD MOTOR CURRENT466 Amps
MOTOR 12V DC, series wound (exclusive WARN high-performance design)
ELECTRICAL CONTROLS Contactor
WIRING Automotive OE-grade buss bars
CORROSION RESISTANCE 408 hour salt spray
INGRESS PROTECTION IP68 submersion and IP69K spray testing (entire unit)
REMOTE CONTROL Corded remote with 12’ (3.7m) lead, plus HUB Wireless Receiver
GEARTRAIN 3-stage planetary
GEAR RATIO 176:1
CLUTCH (FREESPOOLING)Rotating ring gear with stainless steel clutch lever. Manual lever operation.
BRAKE Automatic, six segment mechanical cone
DRUM DIAMETER/LENGTH 3.15”/9.0” (80mm/229mm)
ROPE 3/8” X 100’ Spydura Pro Synthetic
FAIRLEAD Black anodized, forged aluminum hawse
RECOMMENDED BATTERY 650 CCA minimum for winching
BATTERY LEADS 2 gauge, 72” (1.83m)
ZEON FINISH Satin-black powder coat
FINAL POINT OF ASSEMBLY Warn facility in Clackamas, Oregon, USA
WARRANTY Limited lifetime mechanical, 7 years electrical
WEIGHT 85lbs (in box)
Certain bumpers have space constraints that require a low-profile winch configuration. This kit includes power cables to allow owners to remove and remotely mount the control pack.
- Includes 78" of power cables, control pack relocation bracket, hardware, and bus bar isolator
- Relocation bracket sold separately
- Backward compatible with ZEON winch models
- Supersedes WARN Part #89960
