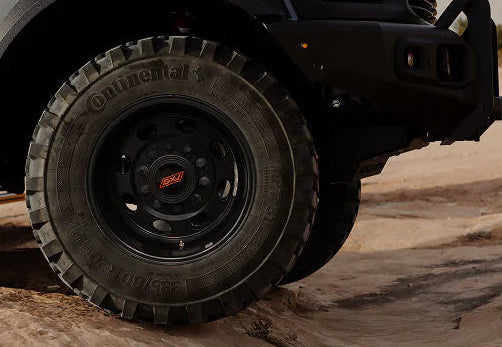

Storyteller Expedition RAM 5500 Forged Wheel in Satin Black
The Evictus Expedition is a Forged Aluminum Wheel available as a wheel only, or mounted and balanced with The following tire options:
Continental MPT81
Continental MPT91 (new product for 2026)

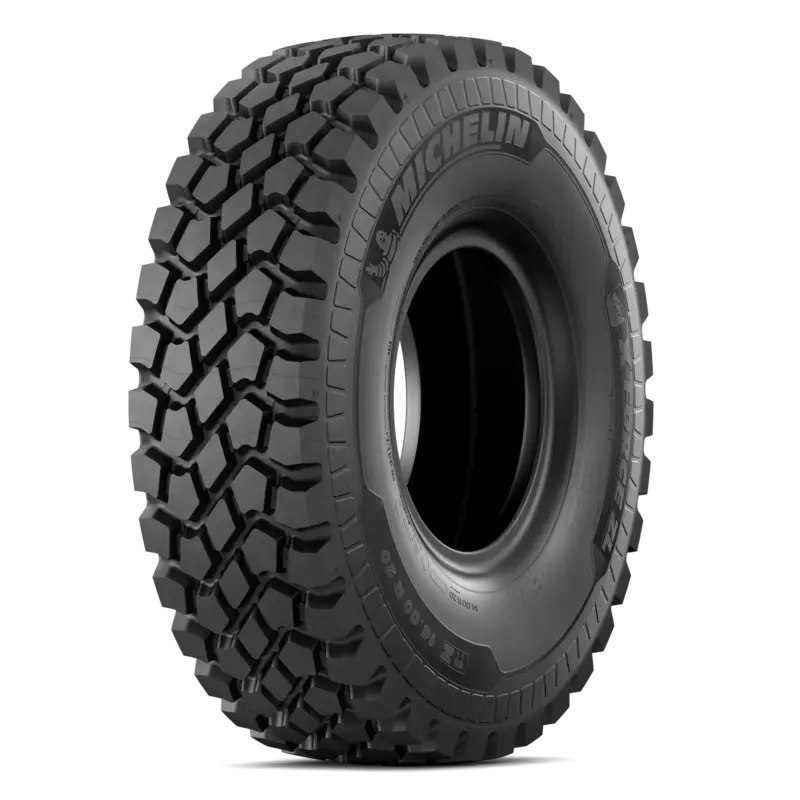

Michelin X Force ZL

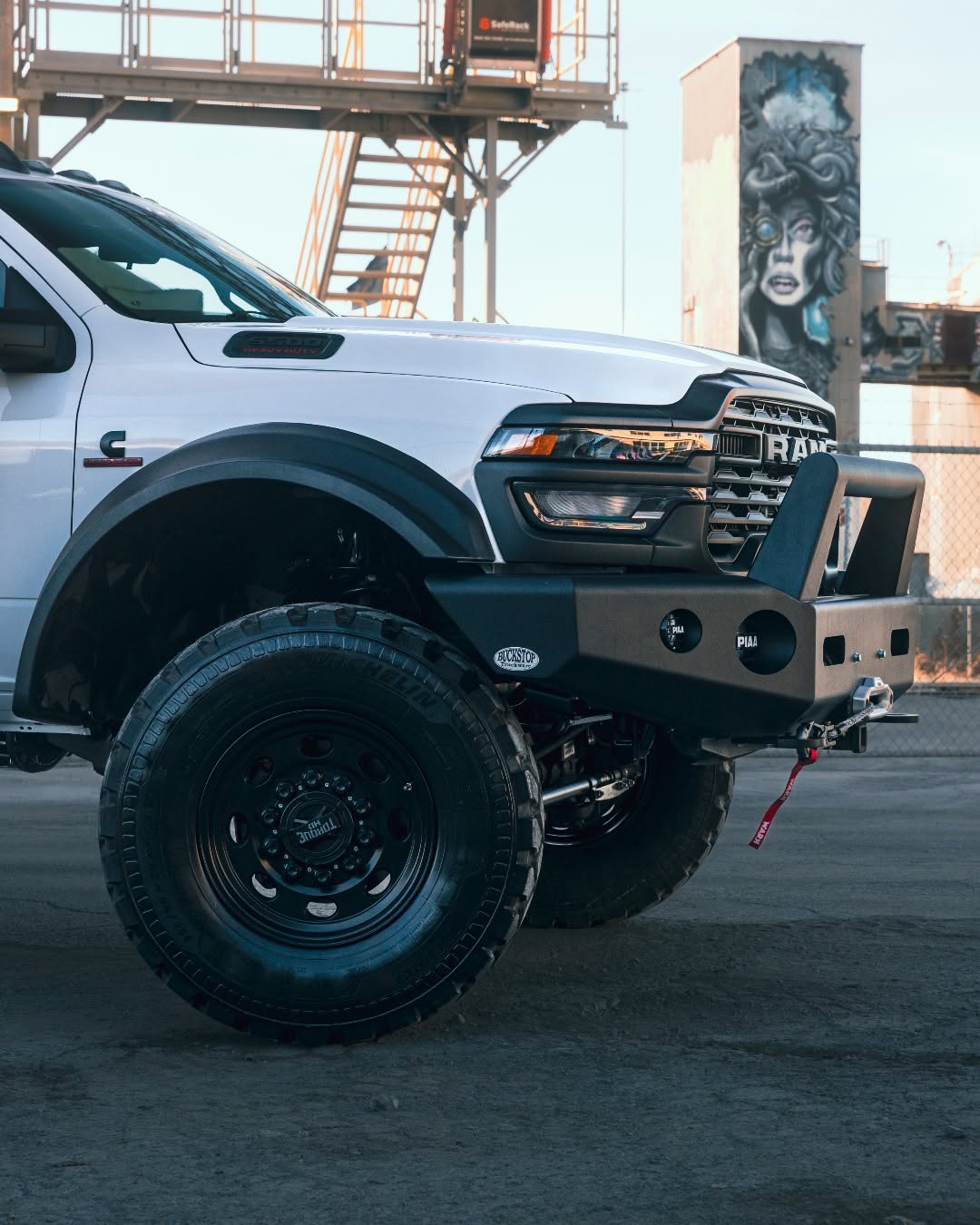

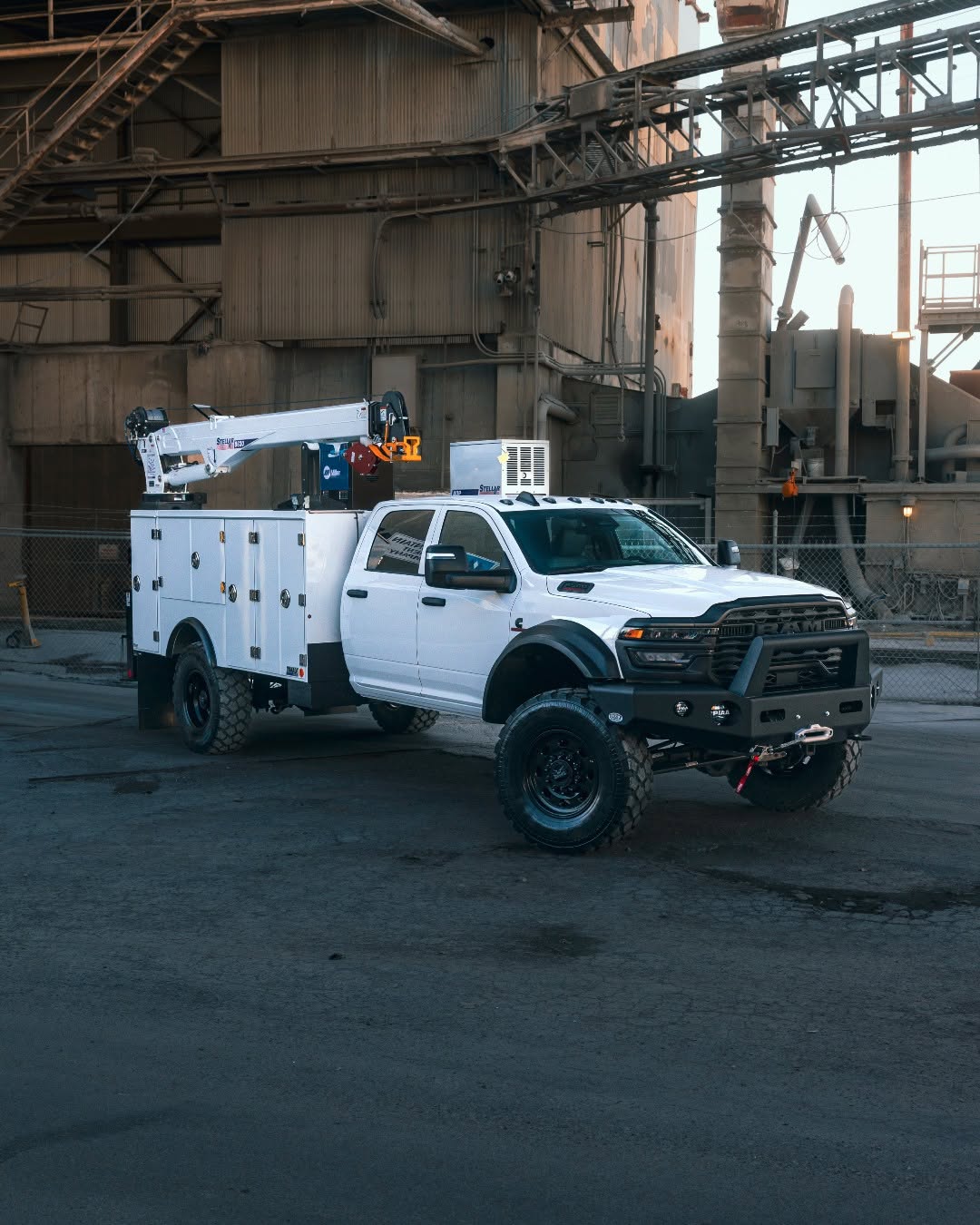

This is the exact wheel featured on the Storyteller Overland 2026 GXV HILT.

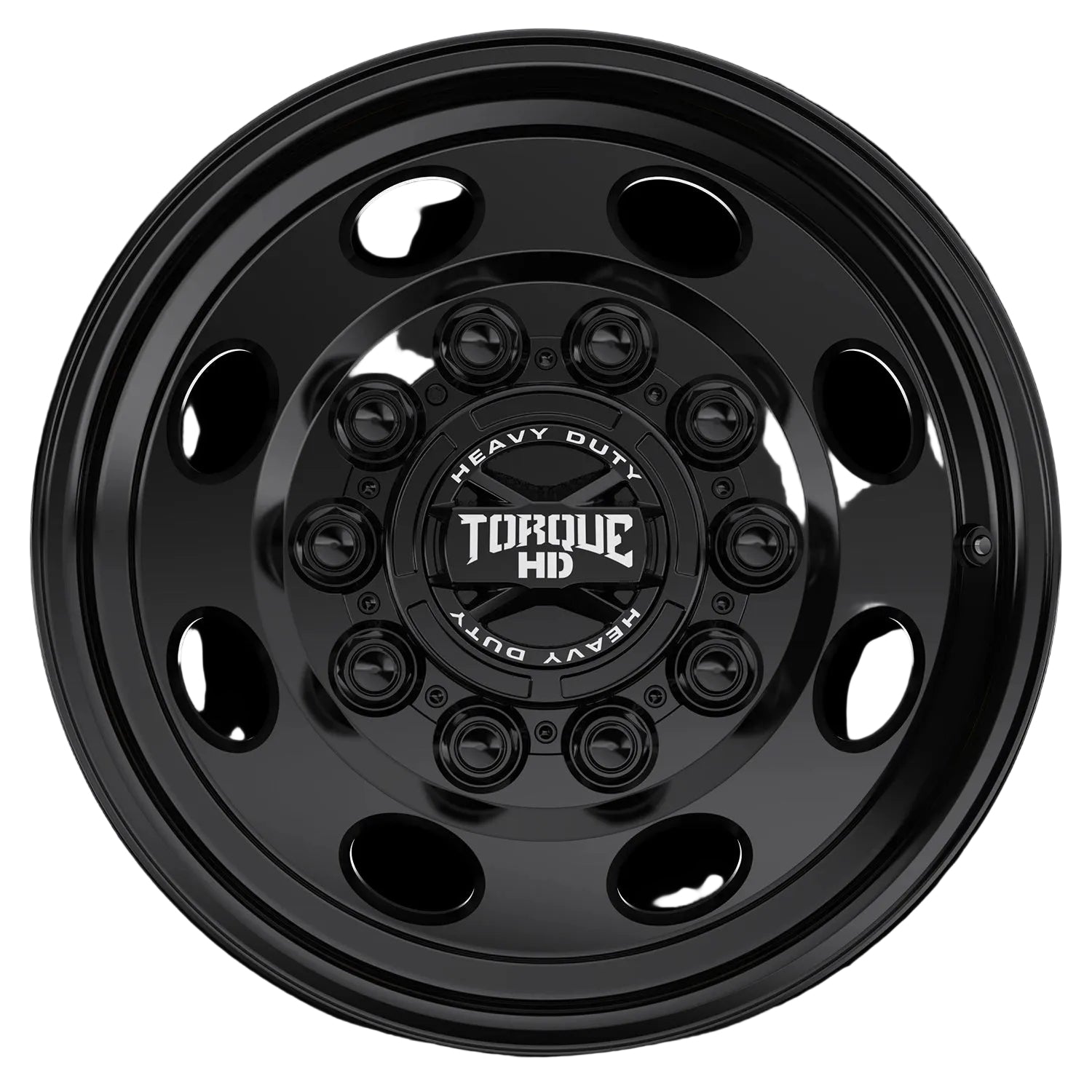

Please Specify Torque Center Cap or GXV Center Cap
Lugs included
Specifications:
20x10 Forged Aluminum in Satin Black
10x225 Bolt Pattern
CB 170.2
Load Rating: 8400
Weight: 56 lbs
Flat Seat All Position Ram
Chassis Model Year: 2024 and later
Details
- Mounted and Balanced
- Shipping not included

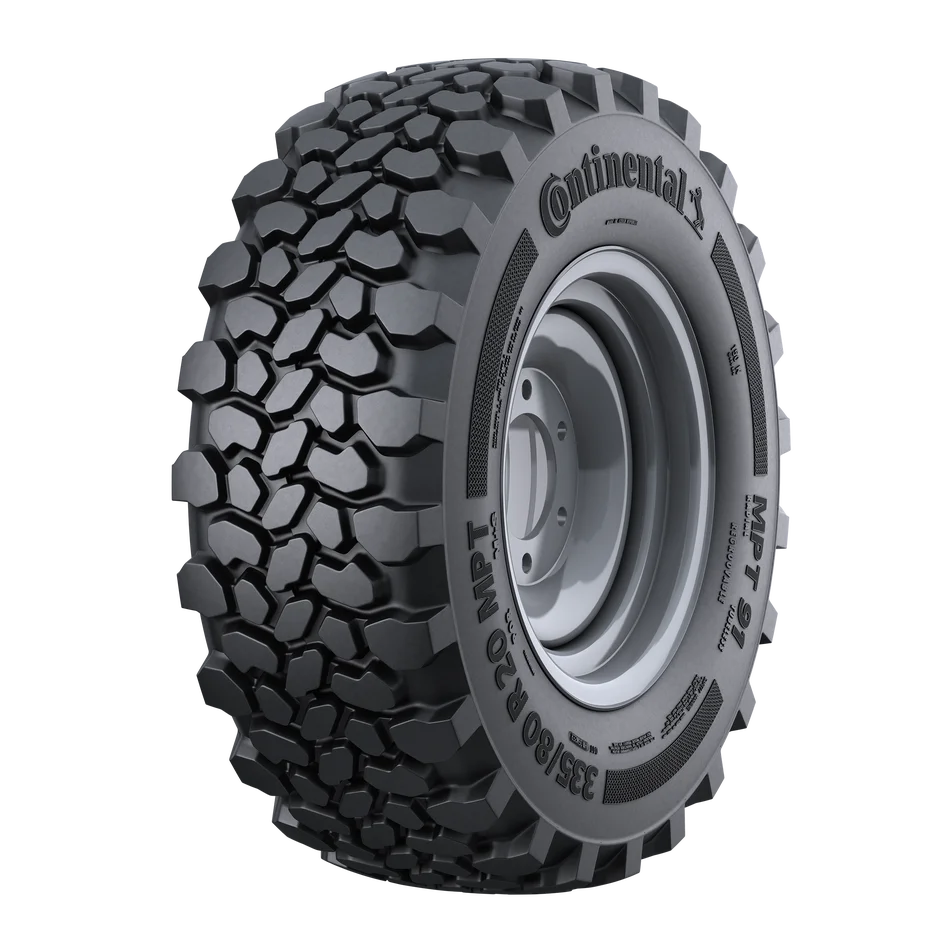

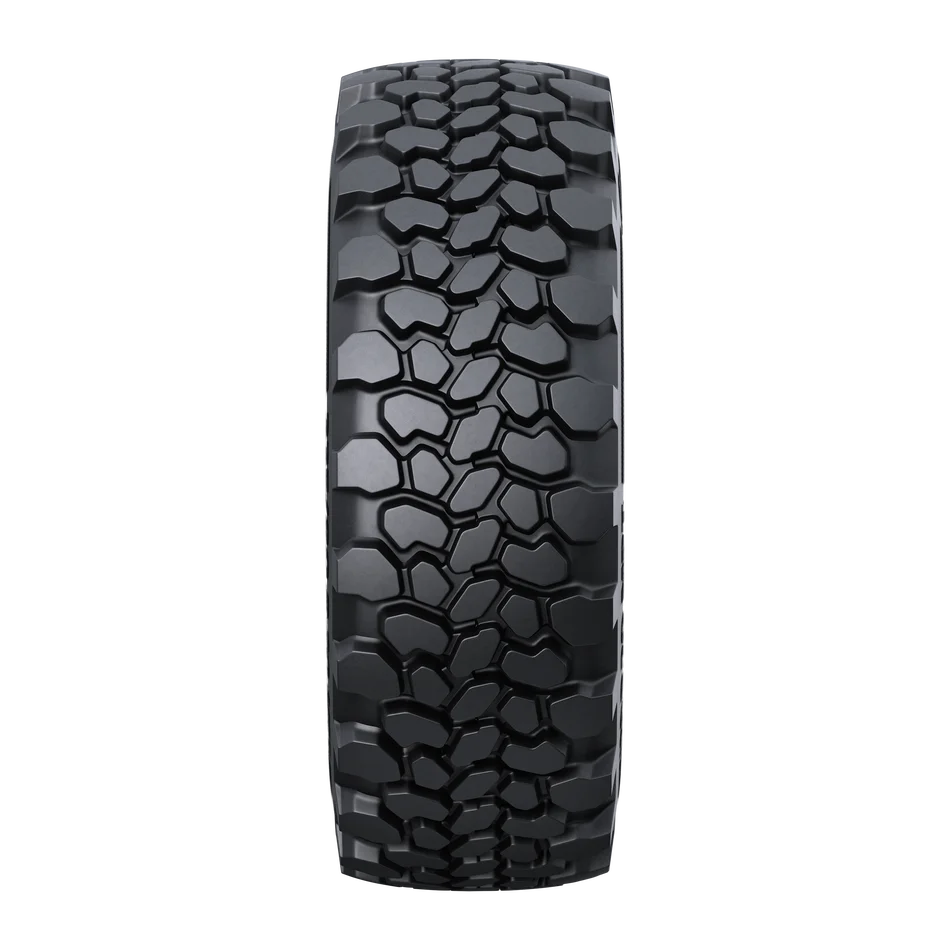

NEW Continental MPT 91
- World-wide proven, unique MPT block pattern design delivering assured traction on soft as well as on hard surfaces
- Bionic turtle shield for highest operational protection
- New carcass design with Stable bead construction for most demanding load carrying applications
- High Load capability due to a special rubber embedded steel cord reinforcement
- New on/offroad compound generation for an extraordinary high mileage performance
- Multiple block geometries for excellent traction and self cleaning capabilities.
Model: MPT 91
Size: 335/80R20
Load Index / Speed Symbol: 150K
Overall Width (in)13.19
Overall Diameter (in) 41.1
1.1Bias/Radials: Radial
WeightL: 113.4 lb
Specifications
Fits
Wheel Offset
Wheel offset is the measurement in millimeters from a wheel’s hub mounting surface to its true centerline, determining how far in or out the wheel sits in the wheel well. The lower the number, the more the wheel sits outside of the fender. For example, a +29 offset sits out farther than a +38 offset.
Positive Offset (+): The mounting surface is toward the front (street-side) face of the wheel. The wheel sits deeper inside the fender.
Zero Offset (0): The mounting surface is exactly on the centerline
Negative Offset (-): The mounting surface is toward the back (brake side) of the wheel. The wheel sticks out past the fender, common on trucks and lifted vehicles.
